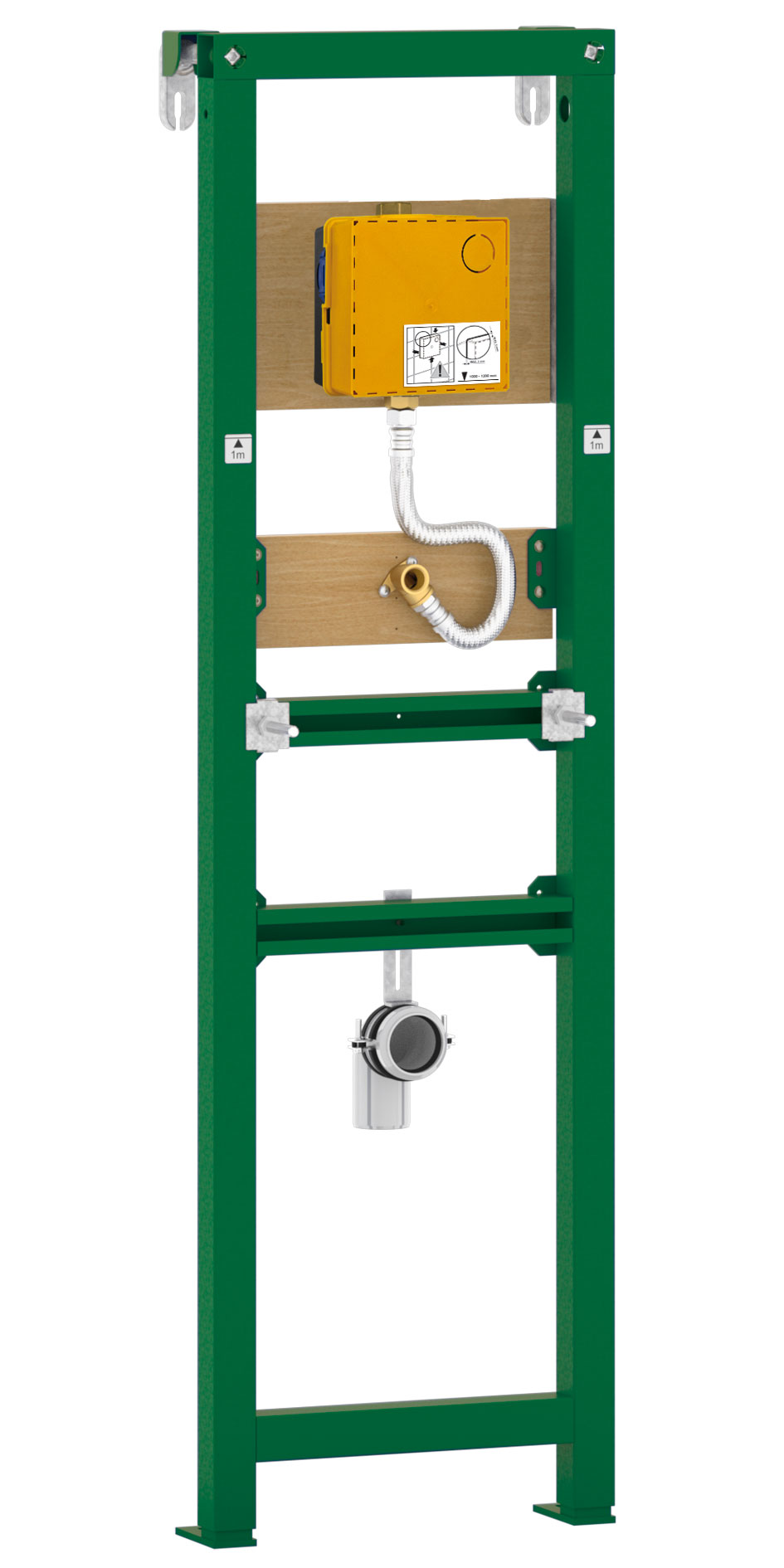

Urinal frame (IR)
Our urinal elements ensure a reliable and efficient installation of the urinal, providing a range of features to meet various requirements.
Product number:
2101F-0169-30
- Installation in prefabricated walls, pre-wall installation in dry walls, universal installation into solid walls
- Supporting, powder coated urinal element, square profile 40 x 40 mm
- Pre-mounted fixing elements and flexible support legs (0-200 mm)
- Height-adjustable bracket for flushing plate mounting
- Height-adjustable bracket with water connection
- Height-adjustable bracket for urinal mounting
- Height-adjustable and rotating Ø 50 mm drain elbow
- Rough installation set, ID No. 2903S-0174-30
- M8 threaded rod (distance up to 280 mm)
- Metal tube Ø 20/20 mm with a Ø 20 mm connecting elbow
- All parts required for installation and mounting are supplied with the product
- Without a concealed trap
- IR flushing plate for urinals, 230 V/50 Hz (ID No. 2592Y-0170-30, 2592Y-0171-30) or 9 V (ID No. 2592Y-0172-30, 2592Y-0173-30) needs to be ordered separately
Skip product gallery
TECH P, IR urinal flush plate, 230 V, bright chrome
For installation onto element with a non-contact flushing functionHigh-quality plastic front panel, gloss chromePower supply: 230 V/50 HzRated voltage: 6 V DCAutomatic detection of userAdjustable flushing time: from 1 to 30 secondsAdjustable sensor sensitivity: from 25 to 70 cmProtection in case of a power failureFor urinal element (ID No. 2101F-0169-30)Front panelControl electronicsControl and reception part with distance detection and background glare preventionParts for mounting flushing plates and electronicsTransformerOption: Installation directly into solid wall
TECH, IR urinal flush plate, 230 V, stainless metal
For installation onto element with a non-contact flushing functionStainless metal front panel secured against vandalismPower supply: 230 V/50 HzRated voltage: 6 V DCAutomatic detection of userAdjustable flushing time: from 1 to 30 secondsAdjustable sensor sensitivity: from 25 to 70 cmProtection in case of a power failureFor urinal element (ID No. 2101F-0169-30)Front panelControl electronicsControl and reception part with distance detection and background glare preventionParts for mounting flushing plates and electronicsTransformerOption: Installation directly into solid wall
TECH P, IR urinal flush plate, 9 V, bright chrome
For installation onto element with a non-contact flushing functionHigh-quality plastic front panel, gloss chromePower supply: 9 VRated voltage: 6 V DCAutomatic detection of userAdjustable flushing time: from 1 to 30 secondsAdjustable sensor sensitivity: from 25 to 70 cmProtection in case of a power failureFor urinal element (ID No. 2101F-0169-30)Front panelControl electronicsControl and reception part with distance detection and background glare preventionParts for mounting flushing plates and electronicsTransformerOption: Installation directly into solid wall
TECH, IR urinal flush plate, 9 V, stainless metal
For installation onto element with a non-contact flushing functionStainless metal front panel secured against vandalismPower supply: 230 V/50 HzRated voltage: 6 V DCAutomatic detection of userAdjustable flushing time: from 1 to 30 secondsAdjustable sensor sensitivity: from 25 to 70 cmProtection in case of a power failureFor urinal element (ID No. 2101F-0169-30)Front panelControl electronicsControl and reception part with distance detection and background glare preventionParts for mounting flushing plates and electronicsTransformerOption: Installation directly into solid wall
