Infra-red
Urinal elements, which enable comfortable and hygienic use with contact free activation based on infra-red sensor.
1 Products found

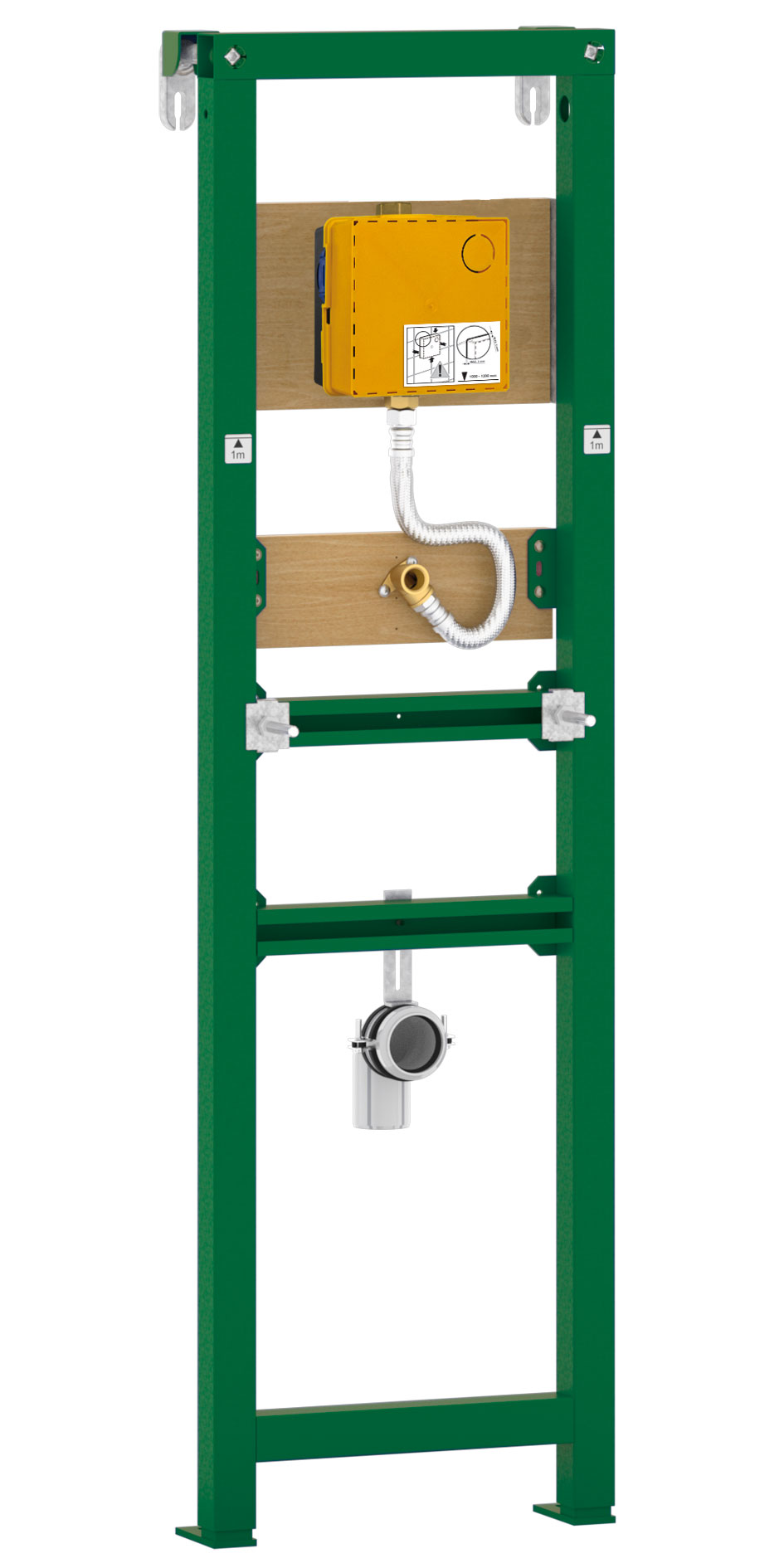

Urinal frame (IR)
Installation in prefabricated walls, pre-wall installation in dry walls, universal installation into solid wallsSupporting, powder coated urinal element, square profile 40 x 40 mmPre-mounted fixing elements and flexible support legs (0-200 mm)Height-adjustable bracket for flushing plate mountingHeight-adjustable bracket with water connectionHeight-adjustable bracket for urinal mountingHeight-adjustable and rotating Ø 50 mm drain elbowRough installation set, ID No. 2903S-0174-30M8 threaded rod (distance up to 280 mm)Metal tube Ø 20/20 mm with a Ø 20 mm connecting elbowAll parts required for installation and mounting are supplied with the productWithout a concealed trapIR flushing plate for urinals, 230 V/50 Hz (ID No. 2592Y-0170-30, 2592Y-0171-30) or 9 V (ID No. 2592Y-0172-30, 2592Y-0173-30) needs to be ordered separately
